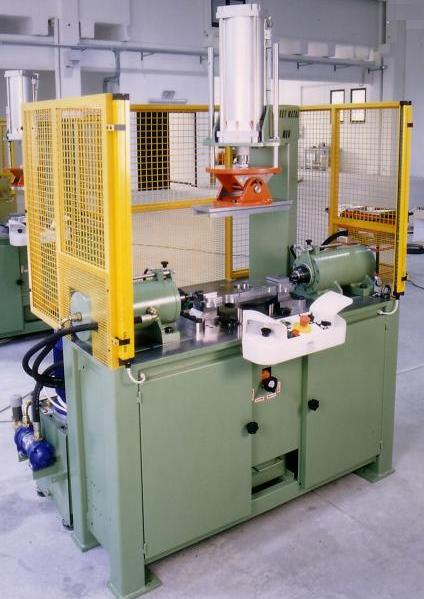

Punching machine

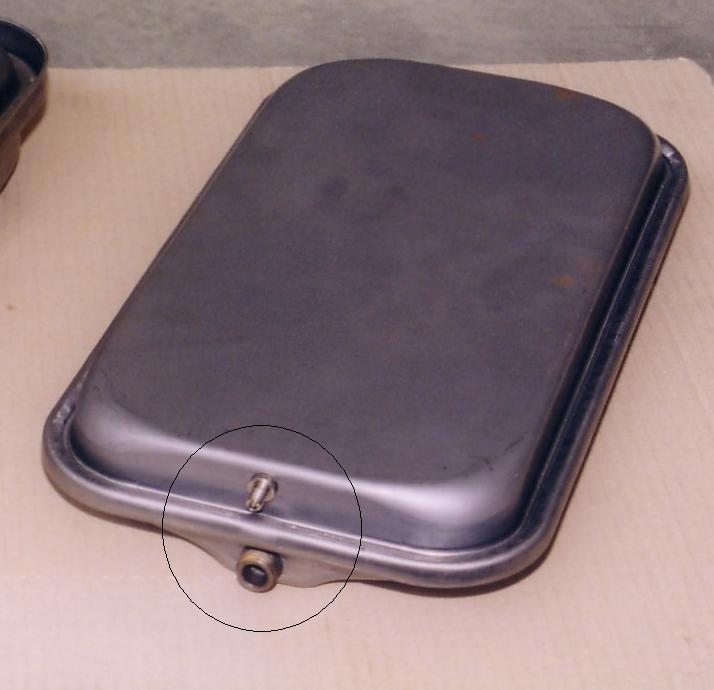

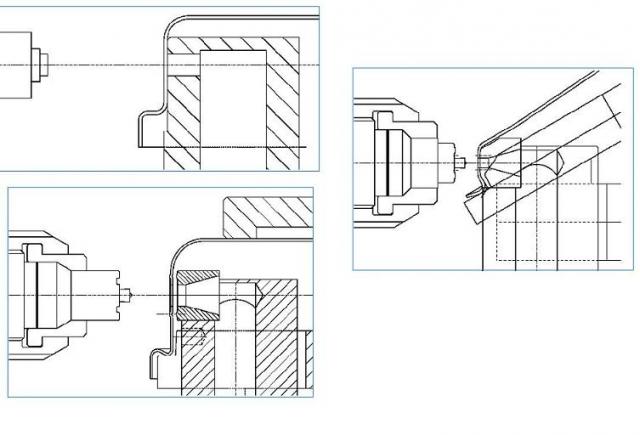

Machine, equipped with n°2 hydraulic units, for the punching of the caps of the expansion tanks on both the connection side and the valve side.

Tecnical characteristics:

  • Type of expansion tanks: cyrcular flat and rectangular flat.
  • Height of hole: variable.
  • Pneumatic device for the ejection of the piece.

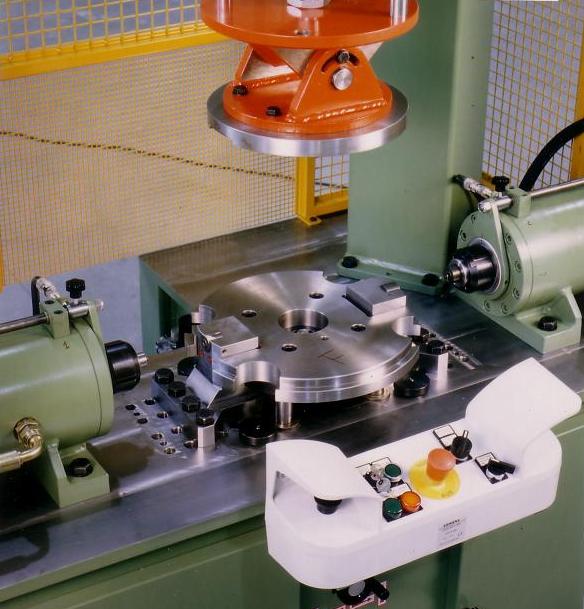

  • Device for the quick change of matrix and punch.
  • Tool for the centering of the piece.
  • Pneumatic presser.
  • Max force of punching and coining unity: 15.000 kg.
  • Main motor power: 4 kW.
  • Two hand control pulpitMechanic barriers on three sides and photoelectric barriers in front side.
