Machine production rings

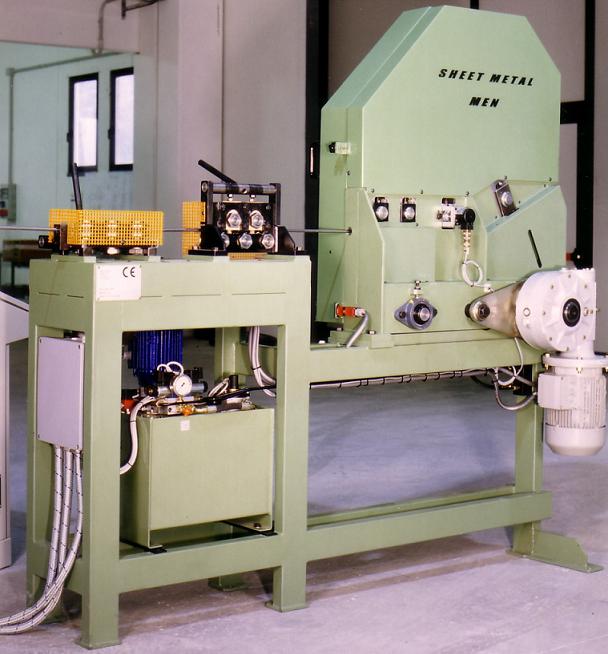

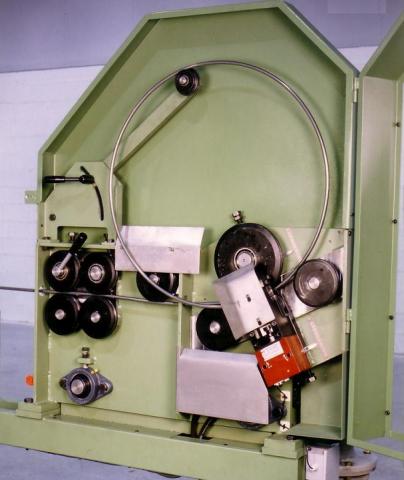

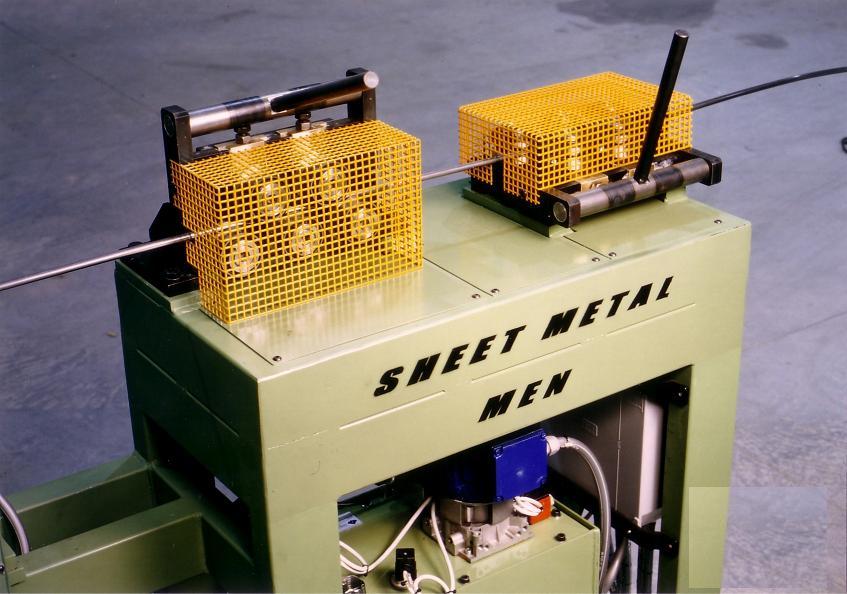

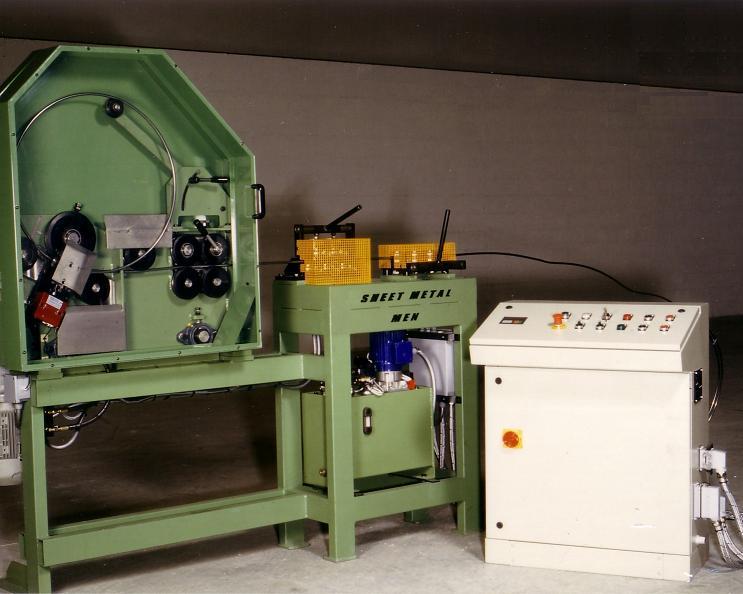

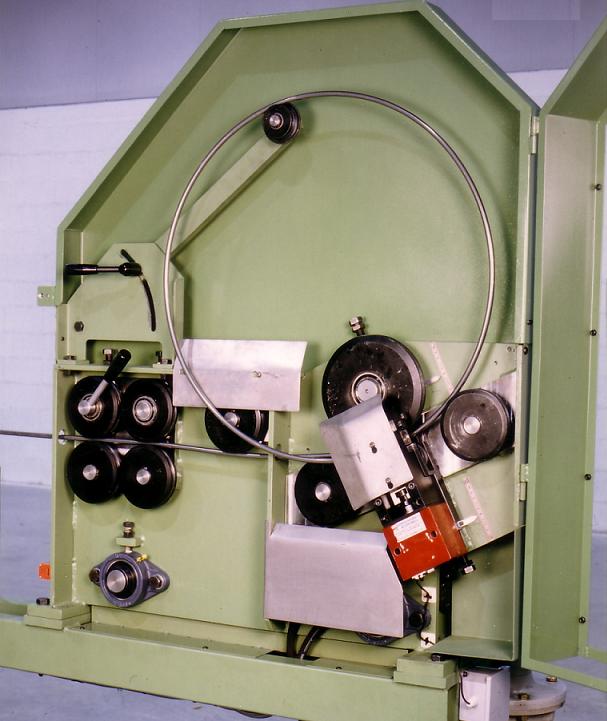

Machine for the automatic production of rolled steel rings. It is composed by these units: reel arm, straighten unit, control unit of the lenght with encoder, bending unit and hydraulic shear unit.
- Max/min diameter of the ring: Ø750 / Ø300 mm.
- Max/min diameter of the wire: Ø10 / Ø8 mm.
- Production: 4 rings for min.
